Automatic Flood Barrier for Hong Kong Typhoon Season: Modern Flood Protection Solutions for High-Risk Sites

Hong Kong typhoon season covers the summer and early autumn - the Hong Kong Observatory’s outlook for 2026 expected it to start in June or later and end in October or before - and recent seasons show how much is at stake. Typhoons, storm surge, extreme rain and rising sea levels do not always arrive as separate events: they can combine into one compound flood event, with damage well beyond what any single driver would cause. For facility managers and asset owners responsible for basements, logistics sites, data centres and waterfront towers, the practical question is how to protect each vulnerable opening reliably - day and night, with or without staff on site.

This guide explains:

• Hong Kong’s compound flood risk and what the data shows
• why the typhoon season in Hong Kong is getting more challenging
• why traditional flood control measures fall short for high-risk openings
• how Spillbarrier’s automatic flood barrier protects entrances, ramps, and critical openings that sandbags and manual boards cannot cover reliably

---

Key Takeaways

• Hong Kong’s flood risk comes from typhoons, storm surge, extreme rain and a rising sea: mean sea level in Victoria Harbour rose by 32 mm per decade between 1954 and 2025 (HKO).
• 2025 was exceptional: 14 tropical cyclones required warning signals, the most since 1946; the No. 10 signal was issued twice; and five Black Rainstorm Warnings came within 17 days (HKO).
• Super Typhoon Ragasa raised the sea level at Quarry Bay to 3.4 m above Chart Datum in September 2025; Mangkhut reached 3.88 m in 2018.
• Spillbarrier’s self-activating flood barriers are flood protection solutions activated by the water itself, with no power supply or staff needed at the moment of flooding.
• If your site has below-grade access, critical equipment or a history of ponding, contact Spillbarrier for a site-specific assessment.

---

Hong Kong’s Changing Flood Risk: Climate Highlights and Weather Outlook

Geographic and Urban Flood Risks

Regional Flood Context

The Pearl River Estuary connects Hong Kong to a wider coastal flood system. Storm surge, high tide, and heavy rain can interact across the whole region, not just within one district.

Hong Kong is a steep coastal city. Dense business districts, transport corridors, podium developments, and waterfront assets sit close to Victoria Harbour, the Pearl River Estuary, and narrow coastal inlets - while hillsides rise sharply behind them. That layout creates fast surface runoff and raises the risk of flash floods where water is channelled toward roads, ramps, tunnels, and low-lying entrances.

This is why flood protection cannot be treated as a public-infrastructure issue alone. A drainage system may work well at district scale, yet a single car park ramp, loading bay, plant-room doorway, or tunnel portal can still become the path of least resistance during a serious flooding event.

Recent Climate Data

Long-term data supports the concern. According to the Hong Kong Observatory, annual mean sea level in Victoria Harbour rose at 32 mm per decade between 1954 and 2025. Every storm surge now starts from a higher baseline, and the risk of compound flooding - heavy rain, high tide and storm surge occurring together - rises with it.

The Hong Kong Observatory shows long-term sea-level rise at Victoria Harbour continuing upward over the historical record. For asset owners, this matters because a threshold that stayed dry 20 years ago may now sit closer to regular overtopping or backflow during typhoons. A detailed forecast is essential before any storm - but it cannot change the physics at your ramp entrance.

Typhoon and Rainfall Outlook

In its annual outlook for 2026, published in March 2026, the Hong Kong Observatory expected:

• a near-normal season with around 4 to 7 tropical cyclones coming within 500 km of Hong Kong;
• a tropical cyclone season likely to start in June or later and end in October or before;
• near-normal annual rainfall (2,100-2,700 mm), with Hong Kong still likely to be affected by rainstorms and localised heavy rain.

The Observatory publishes a new outlook each spring, so check the 2027 outlook before the next season. A forecast tells you what may happen; engineered protection at the opening decides whether water gets into the building.

---

What Recent Weather Events Show Is at Stake

Super Typhoon Ragasa, for which the Observatory issued the Hurricane Signal No. 10 in September 2025, shows why Hong Kong flood risk cannot be judged by local rainfall alone: the most damaging water at the coast came from the sea.

Typhoon Mangkhut and Ragasa

Super Typhoon Mangkhut in 2018 generated a storm surge of 2.35 m above astronomical tide at Quarry Bay, where the sea level reached 3.88 m above Chart Datum - second only to the record of 3.96 m set by Typhoon Wanda in 1962. During Super Typhoon Ragasa on 24 September 2025, the sea level at Quarry Bay rose to 3.4 m above Chart Datum, close to the level reached during Hato in 2017. At least 101 people were injured during Ragasa’s passage, and the Observatory recorded 24 reports of flooding (HKO, The Weather of 2025).

Black Rainstorm Warnings

During 2025, five Black Rainstorm Warnings were issued in just 17 days, from 29 July to 14 August (HKO). The Black signal means that very heavy rain has fallen or is expected to fall generally over Hong Kong, exceeding 70 millimetres in an hour (HKO rainstorm warning system). At that intensity, drains can be overwhelmed faster than a team can deploy any manual flood defence.

Facility Team Readiness

A practical flood-readiness routine for facility teams includes:

• following the Observatory’s warnings and the rainfall readings for your district;
• tracking hourly rainfall intensity during rainstorm warnings;
• checking that drains, gullies and barrier trays are clear before the wet season and after storms.

---

Understanding Hong Kong’s Climate Through the Data

Good flood planning starts with the right data. The Observatory’s 1991-2020 climate normals put Hong Kong’s mean annual rainfall at about 2,431 mm. About 80% of it falls between May and September; June (about 492 mm) and August (about 453 mm) are the wettest months, while January (33 mm) and December (29 mm) are the driest. This is the seasonal window when every unprotected ramp, loading dock and plant-room door is most exposed.

Hong Kong Rainfall Timeline

When it rains

Rain falls throughout the year, but Hong Kong is much wetter from May to September. This is the main flood-risk season for ramps, loading docks and low openings.

Wettest months

June and August are usually the wettest months.

Best window

January to April is the driest period (April already averages about 153 mm), and the best time for inspections, maintenance and flood barrier installation before the wet season begins.

Source: Hong Kong Observatory, climate normals 1991-2020.

---

Hong Kong Typhoon Season: The Full Risk Picture

2025 showed what a heavy season looks like. Fourteen tropical cyclones required warning signals in Hong Kong - more than double the long-term average of about six a year and the highest annual number since 1946. The Hurricane Signal No. 10 was issued twice, for Wipha in July and Ragasa in September, tying the previous record set in 1964 (HKO).

When Ragasa passed on 24 September, the sea level at Quarry Bay reached 3.4 m above Chart Datum. For a building with a below-grade ramp near the waterfront, a single unprotected opening during such an event can mean costly water damage to switchgear, lifts and stored goods.

The Compound Flood Threat: Rain + Surge + Sea-Level Rise

The most important flood control concept for Hong Kong today is compound flooding - where multiple flood drivers interact and produce consequences larger than any single driver alone. A compound event typically unfolds in this sequence:

1. A typhoon drives storm surge into the harbour - during Mangkhut in 2018, 2.35 m above the astronomical tide at Quarry Bay.
2. If the surge coincides with high tide, sea levels reach their highest: 3.88 m above Chart Datum at Quarry Bay during Mangkhut, 3.4 m during Ragasa.
3. Extreme rainfall from the rainbands overwhelms stormwater drainage, which cannot discharge freely while outfall levels are high.
4. Hill runoff accelerates across steep terrain and funnels toward low-lying urban basements and openings.
5. The baseline mean sea level keeps rising - 32 mm per decade in Victoria Harbour since 1954 - so every event starts from a higher floor.

Each factor alone might not breach a threshold. Together, they produce events like Ragasa and Mangkhut. This compound risk picture is what should drive every flood barrier investment decision in Hong Kong today.

---

Why Traditional Flood Control Measures Are No Longer Enough

For decades, sandbags were the default response to typhoon flood risk in Hong Kong. Temporary flood barriers can be constructed using sandbags, but recent innovations have led to more efficient mobile flood protection systems. Modular self-supporting barriers, water-filled or ballast-based systems, and prefabricated panel barriers are modern alternatives to traditional sandbagging for flood protection. Flood protection systems can be designed for rapid deployment and reuse in locations where permanent flood defences are not practical - enhancing their versatility in emergency situations.

However, temporary systems require consistent maintenance and enough warning to deploy before floods occur. Flash floods can reach a basement ramp very quickly once intense rain sets in. If the signal is issued at 3 a.m. and no staff are on site, manual flood control is simply not available. Rapid deployment is not the same as automatic deployment. If no one is there to install the system, the building remains exposed.

Types of Flood Barriers: What Exists and What Works in Hong Kong

Flood barriers can be classified into temporary and permanent types, with temporary barriers including sandbags and modular self-supporting systems designed for rapid deployment. Different types of flood barriers include demountable and panel barriers, inflatable and water-filled tubes, automatic and passive barriers, permanent flood walls and levees, expandable barriers, and glass flood walls.

Perimeter flood barriers are often placed around buildings to prevent floodwaters from entering, with examples including sandbag walls as temporary solutions and reinforced concrete walls as permanent structures. For most Hong Kong commercial buildings, a full perimeter barrier is not practical because of site density, access requirements, and fire safety rules. Flood protection systems can be designed for rapid deployment and reuse where permanent defences are not practical, but for openings that must stay protected without staff on site, an automatic barrier is the option that does not depend on anyone being there.

The Levee Effect: A Hidden Engineering Risk

Flood barriers require careful design to avoid redirecting hazards. They can present significant challenges such as the “Levee Effect” and downstream risks. A barrier that protects one doorway can divert water pressure toward an adjacent unprotected opening, a neighbouring building’s ramp, or a shared drainage channel. In Hong Kong’s high-density environment - where buildings share podium levels, underground connections, and drainage infrastructure - this risk is particularly pronounced.

The answer is to plan barriers as part of the whole site’s drainage, so that protecting one opening does not simply divert water to another.

---

What Is an Automatic Flood Barrier and How Does It Work?

An automatic flood barrier - also called a self-rising or passive flood barrier - is an engineered gate installed flush with a driveway, floor threshold, or access opening. Automatic and passive barriers deploy automatically when water levels rise, sealing off an area without human intervention. The system requires no electricity, no sensor array, no control room command, and no manual lifting.

1. The barrier lies flush with the floor in normal conditions. Vehicles, pedestrians, forklifts and pallet trucks pass over it without obstruction.
2. Incoming water flows through the openings into the barrier’s tray.
3. The water collecting in the tray makes the barrier float up.
4. Springs then fold it into an upright, tightly closed position.
5. The closed barrier holds back the water on the protected side of the opening.

The sequence is driven entirely by the incoming water. Because water itself is the driving force, the system remains operational during a complete power blackout, which can accompany a typhoon.

---

Spillbarrier: An Automatic Flood Barrier for Hong Kong Openings

Spillbarrier by Anhamm is a specialist manufacturer with over 30 years of experience in automatic, self-activating flood protection solutions. The flood barrier is designed specifically for industrial gates, driveways, and access ramps - exactly the openings most vulnerable to typhoon-season flash floods in Hong Kong.

When water enters the barrier’s built-in sump, a float rises and mechanically actuates a stainless-steel gate to seal the opening - completely without external power, hydraulics, pneumatics, or human intervention.

Technical Specifications - Flood Barrier

Each barrier is made to measure for the opening, so projects start with a site visit and a review of the openings at risk.

---

Local Weather Forecast Integration: Building a Flood-Ready Operation

A strong local weather forecast routine is the operational layer that sits alongside permanent flood protection - it tells you when the barrier is most likely to be tested. For Hong Kong facility managers, the following weather information sources should be integrated into daily operations during the typhoon season:

• Hong Kong Observatory (hko.gov.hk) - official typhoon forecast track updates, rainstorm bulletins, and storm surge alerts. The authoritative source for all signal decisions.
• MyObservatory app - provides district-level location weather data and real-time hourly rainfall readings from nearby weather stations across Hong Kong.
• Weather radar - available on HKO’s website, showing rain band positions. During a developing typhoon, this helps you see where intense rain is heading.
• Rainstorm warning signals - Amber, Red, and Black, each with defined thresholds. The rainstorm warning signal system is independent of the tropical cyclone system and can be issued any time during the wet season.

The Critical Signal Timeline for Flood Barrier Readiness

The critical insight is in the lower rows of this table. When a Black Rainstorm Warning or Signal No. 8 is raised, it may be unsafe for staff to carry panels through wind and rain. The automatic flood barrier has already activated - requiring nothing from anyone.

Seasonal Preparation: The Jan-Apr Window

Rainfall in Hong Kong is generally low in winter, and January to April is the driest part of the year. This is the ideal window for flood barrier installation, maintenance inspections, and drainage assessments. In the 1991-2020 normals, April averages about 153 mm of rain and May about 291 mm, so aim to finish flood protection upgrades by March or early April.

---

Use Cases: Flood Barriers for Hong Kong Facilities

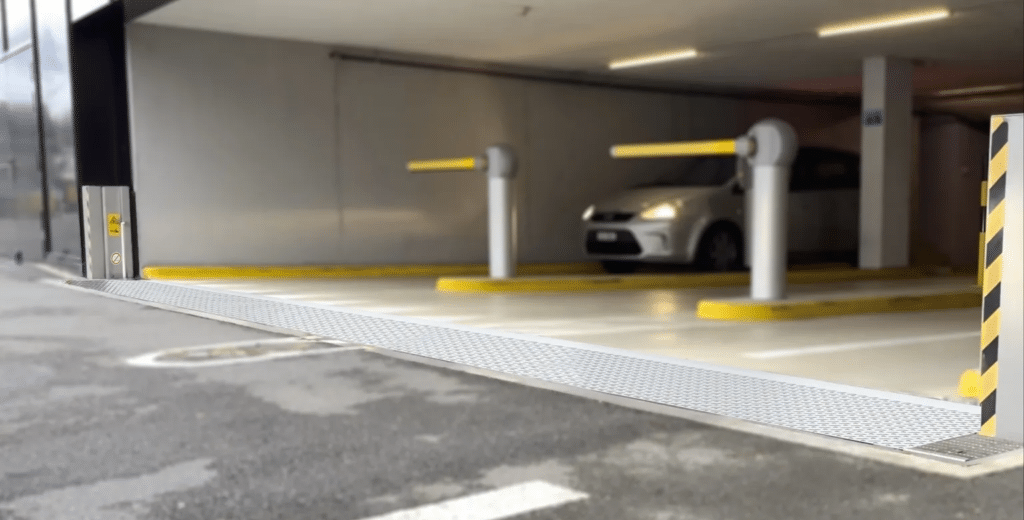

Basement Car Parks in Commercial Towers

In Central, Admiralty, Wan Chai, Kowloon, and Quarry Bay, a ramp may fall below street level within just a few metres. During intense rain events, surface runoff collects at the ramp crest and cascades into the basement. An automatic flood barrier at the ramp entrance creates a sealed line of defence before water enters - without any interference to daily vehicle movements.

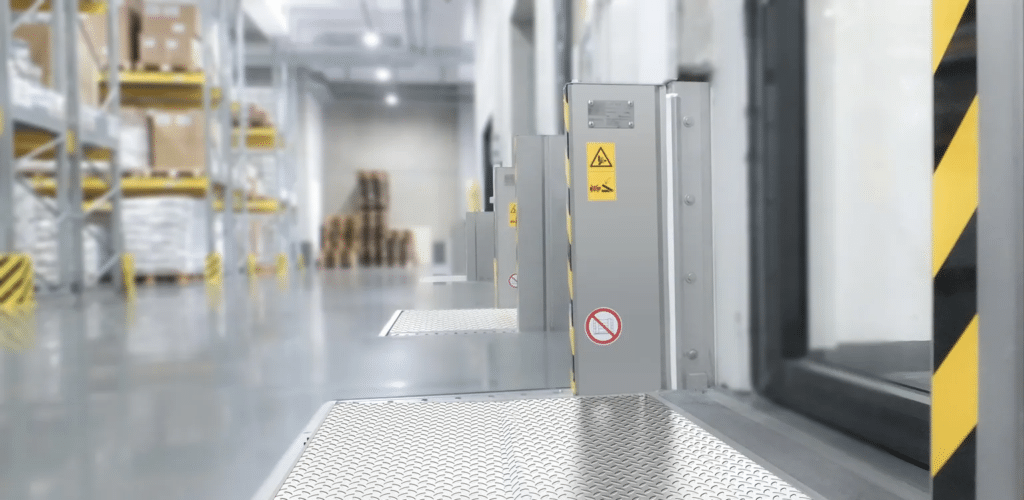

Logistics and Industrial Facilities in the New Territories

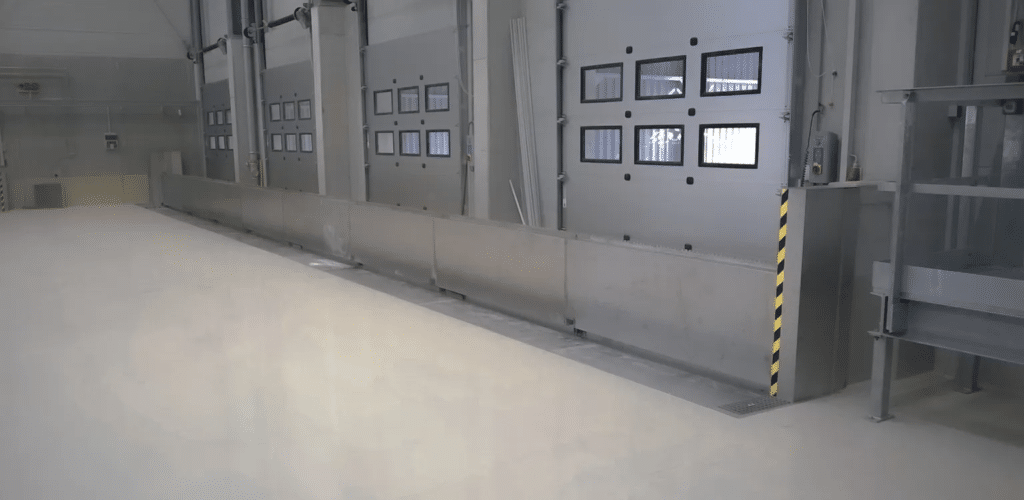

Wide loading docks facing open yards are among the most difficult openings to seal manually during a typhoon. Modular self-supporting barriers, water-filled systems, and prefabricated panel barriers are modern alternatives to traditional sandbagging for flood protection in these environments - but where no staff can be relied on, a permanently installed automatic barrier removes that dependency. A Spillbarrier installation across the dock threshold protects inventory, machinery, forklifts, and switchgear without requiring any interruption to truck and logistics operations.

Data Centres and Critical Infrastructure

Hong Kong is a major data-centre location, and data centres have near-zero tolerance for water ingress: even a few centimetres of water can force an emergency shutdown. Because the Spillbarrier is activated by the water itself, a mains failure during a typhoon does not affect it - unlike powered flood gates, which need a backup supply to operate in a blackout.

Waterfront Commercial and Residential Towers

Towers in Wan Chai, North Point, Quarry Bay, and New Territories waterfront districts sit within the direct storm surge envelope. The 3.4 m above Chart Datum recorded at Quarry Bay during Ragasa in 2025, and the 3.88 m of Mangkhut in 2018, are useful benchmarks - compare them with your ground-floor threshold levels after converting both to the same datum. Glass flood walls - designed to hold back water while maintaining visibility in urban or scenic areas - are one option for premium waterfront lobbies. For service ramps and loading areas at the same properties, an automatic Spillbarrier can protect the opening without staff.

MTR-Connected Retail Podiums and Underground Passages

The MTR network creates an interconnected underground layer beneath large parts of Hong Kong. Flash floods can propagate quickly through these linked spaces, and any single unprotected threshold becomes a pathway for a much larger volume of water. Automatic barriers can be installed at selected thresholds without disrupting pedestrian movement, accessibility, or the visual character of premium retail environments - the flush-floor design ensures the barrier is invisible until activated.

---

The Economic Case for Automatic Flood Protection

Flood damage to a commercial building in Hong Kong compounds rapidly across multiple cost categories:

• Direct repair: dehumidification, structural drying, switchgear replacement, lift systems, floor finishes, ceiling reinstatement.
• Tenant disruption: if tenants suffer losses due to inadequate flood protection, landlords may face lease-related claims.
• Business interruption: downtime in a data centre or logistics hub is often far more expensive than the repair itself.
• Insurance complications: claims may be challenged if flood protection measures were inadequate or undocumented.

Research from The Hong Kong Polytechnic University (Journal of Hydrology, 2025) modelled coastal flooding from Typhoons Hato, Mangkhut and Saola and found that a worst-case combination of extreme tides and future sea-level rise could amplify economic losses by 1.3 to 2.3 times, depending on the typhoon - with the Yuen Long District identified as the most vulnerable to coastal flooding.

Over the life of an asset, compare the cost of a permanent, automatic system with the recurring cost of sandbags, demountable panels and the staff needed to deploy them. A documented, third-party-tested flood barrier at a vulnerable opening is materially different from a note in the risk register that says “sandbags available.”

---

Public Coastal Defences and Building-Level Protection

Government coastal defences and drainage work at district scale. They cannot be designed around every ramp, loading bay or plant-room door, so building owners and facility managers still need a plan for their own openings: below-grade entrances, service ramps and doors to critical equipment. Replacing manual, staff-dependent measures at those openings with a permanently installed automatic barrier closes the gap between public protection and building-level resilience.

---

Spillbarrier for Hong Kong: Getting Started with Flood Protection

If your site has experienced ponding, near-miss flooding, or sits in a district with a documented flood history, a professional site assessment is the most productive first step before the next typhoon season. Spillbarrier works with facility managers, property owners, engineers, and consultants to assess flood protection requirements at specific openings and propose engineered solutions sized for actual hydraulic conditions.

1. Site assessment: identify all below-grade or threshold openings at flood risk. Document sill levels relative to local ground and tidal benchmarks.
2. Flood risk review: cross-reference opening elevations against known flood levels and storm surge records, such as the 3.4 m above Chart Datum recorded at Quarry Bay during Ragasa in 2025, converted to the same datum.
3. Sizing: the barrier is made to measure for the opening width and the required sealing height (0.30-2.40 m); the load rating for your traffic is confirmed during project planning.
4. Installation: the barrier is installed flush with the driveway or floor, integrated into the structural slab. No above-floor structure is visible during normal operations.
5. Handover and service: the installed barrier is handed over to the site team; optional service contracts with customised intervals are available.

You can request a consultation or site-specific proposal from Anhamm/Spillbarrier. The Spillbarrier gallery shows real installations in similar environments worldwide.

---

Frequently Asked Questions About Flood Barriers in Hong Kong

---

Technical details in this article are based on Anhamm product documentation; weather and sea-level data come from the Hong Kong Observatory and were checked in October 2026. Spillbarrier is the international brand at spillbarrier.com.
