Chemical protection: chemical barrier systems for industry and the environment

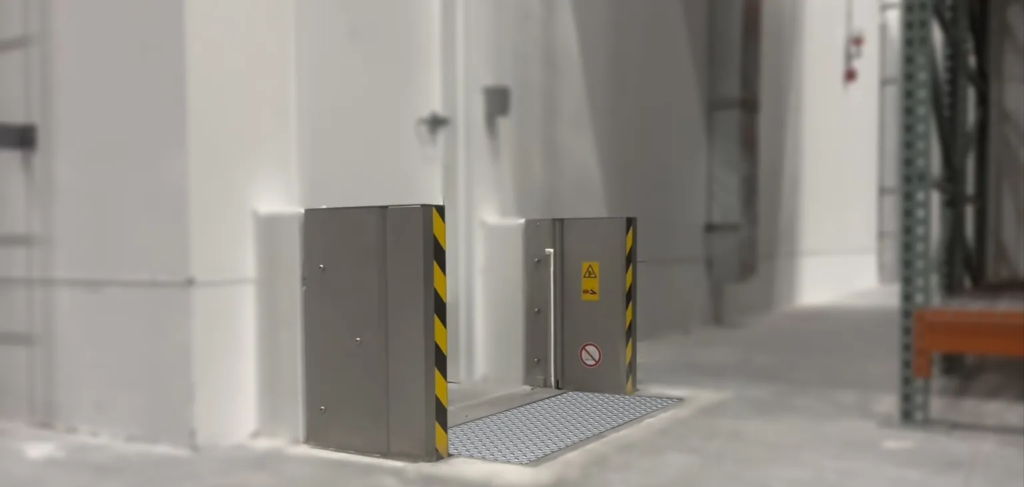

Chemical barriers and spill containment systems, such as an automatic chemical spill barrier at a door opening, are risk-control infrastructure: they decide whether a leak stays a contained incident or becomes an environmental and personnel crisis. The European Commission’s analysis of chemical accidents in warehouses (MAHB Lessons Learned Bulletin No. 16) lists poor design of firewater containment systems among the issues that led to environmental pollution.

This guide explains how chemical barriers work, which materials protect against hazardous liquids, and what the main secondary containment rules actually require, with a documented real-world incident. You’ll also learn how to build a site-specific chemical protection strategy aligned with EPA compliance, industry practice and operational readiness.

What Are Chemical Protection Barriers?

Chemical protection barriers are engineered systems and materials designed to isolate, block, and contain hazardous liquids to prevent migration, exposure, and environmental release. Fundamentally, they function as a physical control layer that stops or redirects spill pathways before contamination spreads to sensitive zones (drainage systems, personnel areas, soil, and groundwater).

Types of Chemical Barriers (Overview)

• Door threshold barriers: These prevent spill migration into adjacent corridors and offices. Temporary versions are made from foam, rubber or hybrid materials rated for specific chemicals; permanent automatic versions, such as the Spillbarrier, are made of AISI 304 stainless steel with PTFE seals and are raised by the liquid itself.
• Drain covers & sealing plugs: By blocking entry to storm and sanitary systems, these keep chemicals out of municipal treatment and surface waters.
• Temporary bunds & spill trays: Foldable or modular containment structures positioned near storage, transfer or processing areas; their capacity depends on the design and must match the volume you need to hold.
• Secondary containment flooring & coatings: These impermeable surfaces (stainless steel, coated concrete, HDPE-lined) prevent liquid penetration and enable safe cleanup.
• Mobile chemical containment systems: Deployable barriers, booms and absorbents, pre-positioned near the risk so that responders can use them quickly.

Related reading: Understanding Spill Barriers: Types, Materials & Installation covers material comparison and deployment workflows in detail.

---

Why Chemical Barriers Are Critical: Regulatory Compliance & Risk Reduction

EPA SPCC Secondary Containment Requirements (40 CFR 112.7-112.8)

The U.S. Spill Prevention, Control, and Countermeasure (SPCC) rule (40 CFR Part 112) applies to oil, not to chemicals in general. It covers non-transportation facilities that could reasonably be expected to discharge oil to navigable waters or adjoining shorelines and whose aggregate aboveground oil storage capacity exceeds 1,320 U.S. gallons, counting only containers of 55 gallons or more (40 CFR 112.1).

• General containment (§112.7(c)): the facility must provide appropriate containment and/or diversionary structures or equipment to prevent a discharge. Secondary containment may be active or passive. The rule lists dikes, berms or retaining walls, curbing or drip pans, sumps and collection systems, culverting and gutters, weirs, booms or other barriers, spill diversion and retention ponds, and sorbent materials. The design only has to address the typical failure mode and the most likely quantity of oil discharged.
• Bulk storage containers (§112.8(c)(2)): secondary containment must hold the entire capacity of the largest single container plus sufficient freeboard to contain precipitation, and diked areas must be sufficiently impervious to contain discharged oil. The SPCC rule has no “+10% of total volume” term.
• Inspection & maintenance: each aboveground container must be tested or inspected for integrity on a regular schedule (§112.8(c)(6)), and rainwater may only be drained from diked areas under the conditions set in §112.8(c)(3).
• Where barriers fit: curbs, weirs and “other barriers” are among the accepted prevention systems, so a door or threshold barrier such as a chemical barrier can be part of a facility’s containment design when the SPCC Plan supports it.

Non-compliance exposes a facility to enforcement under the Clean Water Act, on top of cleanup, remediation and third-party liability costs.

Beyond SPCC: RCRA, State Regulations & Industry Standards

Hazardous waste storage falls under the Resource Conservation and Recovery Act (RCRA, 40 CFR Part 264 for permitted facilities), which uses its own sizing rules:

• Container storage areas (§264.175(b)): a base free of cracks or gaps and a containment capacity of 10% of the volume of the containers or the volume of the largest container, whichever is greater. Container storage areas must be inspected at least weekly (§264.174).
• Tank systems (§264.193(e)(1)): external liner systems must contain 100% of the capacity of the largest tank within their boundary, plus the precipitation from a 25-year, 24-hour rainfall event unless run-on is prevented.

States often add their own rules, and other countries use different formulas. France and Spain are two examples in the table below. ISO 6530 and ASTM F903, which are sometimes quoted in this context, are test methods for protective clothing materials; they do not rate spill barriers or containment structures (see below).

---

How Chemical Barriers Work: Principles & Multi-Layer Defense

An effective chemical protection strategy combines three operational layers: isolation at source, containment at the pathway, and safe recovery and decontamination. Consequently, this layered approach (defense-in-depth) ensures that if one layer fails, others prevent escalation.

---

Case Study 1: Chemical Unloading Incident (Real-World Impact)

The Incident: Sulfuric Acid / Sodium Hypochlorite Mixing at MGPI Processing

On October 21, 2016, at the MGPI Processing plant in Atchison, Kansas, a delivery driver connected a tanker truck’s sulfuric acid hose to the sodium hypochlorite fill line. Thousands of gallons of sulfuric acid flowed into the facility’s sodium hypochlorite tank, producing a cloud containing chlorine that drifted into the community. According to the U.S. Chemical Safety Board (CSB), the release sent over 140 workers and members of the public to area hospitals and led to shelter-in-place and evacuation orders for thousands of residents.

Root Causes

• Fill-line design: the sulfuric acid and sodium hypochlorite fill lines were only 18 inches apart, looked similar and were not clearly marked.
• Access control: the employee unlocked the sulfuric acid line, but the sodium hypochlorite line was also unlocked without the operator knowing.
• Shut-off and procedures: the CSB examined the design of chemical transfer equipment, automated and remote shut-off systems, and the unloading procedures agreed between the facility and its distributor.

Lessons for Chemical Barriers & Containment

The MGPI release was a gas release caused by mixing incompatible chemicals inside a tank, so floor barriers or drain covers would not have stopped the cloud. The lessons are about prevention at the unloading point: clearly marked and individually locked fill lines, verification before every transfer, and emergency shut-off. Liquid containment at unloading areas still matters for the other failure modes, such as a hose rupture or an overfill, where it keeps incompatible liquids apart and out of the drains.

Fire Protection & Chemical Safety in Warehouses explores similar scenarios and practical containment strategies for storage facilities.

---

Chemical Barrier Material Performance: What ISO 6530 and ASTM F903 Cover

Not all materials labeled “chemical resistant” perform the same way. Performance depends on chemical type, concentration, temperature, contact time and exposure scenario (splash, spray or pooling). Two test standards are often quoted in this context, but both were written for protective clothing, not for spill barriers.

ISO 6530:2005 - A Protective Clothing Test, Not a Barrier Rating

ISO 6530:2005 (“Protective clothing - Protection against liquid chemicals - Test method for resistance of materials to penetration by liquids”) specifies a method to measure indices of penetration, absorption and repellency for protective clothing materials, mainly against chemicals of low volatility. It covers light exposure such as spray droplets and a single low-volume splash or low-pressure jet. It does not test structural barriers, floor coatings or containment walls.

ASTM F903 - Liquid Penetration of Protective Clothing Materials

ASTM F903 is the “Standard Test Method for Resistance of Materials Used in Protective Clothing to Penetration by Liquids”. The test liquid is held in continuous contact with the outer surface of the specimen, with procedures that vary exposure time and applied pressure, and penetration is detected visually. Like ISO 6530, it is used to select protective clothing, not to rate spill barriers.

What to ask for instead: for a fixed barrier or containment structure, check the chemical compatibility of every wetted material (metal, seals, coatings) with your liquids, concentrations and temperatures, and ask for evidence of the leak-tightness of the assembled system. For example, Spillbarrier barriers are made of AISI 304 stainless steel with PTFE seals, and their leak-tightness for at least 72 hours was tested under RW-TÜV supervision; compatibility with the liquids you store should still be confirmed for each project.

---

Stainless Steel vs. HDPE: Material Comparison for Chemical Barriers

Stainless Steel Containment Systems

Stainless steel (grades 1.4301 / V2A or 1.4571 / V4A) is a common choice for long-term secondary containment and chemical barrier infrastructure in demanding environments.

• Corrosion resistance: it resists corrosion from many acids, bases and oxidizers, but not all of them: chlorides and some acids attack stainless steel, so compatibility must be checked for each chemical and grade.
• Hygienic & cleanable: its non-porous surface allows thorough decontamination; it is widely used in food, pharmaceutical and biotech facilities.
• Durability: it does not embrittle under UV and keeps its strength over a long service life with routine inspection.
• Cost: a higher upfront investment than polymer solutions, offset by the longer service life.
• Customization: modular designs allow an exact fit for complex facility layouts; grated flooring and drainage channels can be engineered to specification.

Best for: Permanent chemical storage areas, transfer stations, pump skids, secondary containment floors, high-value facility protection.

HDPE (High-Density Polyethylene) Containment

HDPE (polyethylene) is a cost-effective alternative for short-to-medium term storage and temporary chemical barriers, particularly for less aggressive chemicals.

• Chemical resistance: good against many acids, bases and aqueous solutions; some solvents and strong oxidizers attack or swell it, and it loses strength at elevated temperatures and under prolonged UV exposure unless stabilised.
• Lightweight & portable: because it’s easy to move and reconfigure, it’s well suited to mobile spill trays and temporary barriers.
• Cost: lower upfront cost than stainless steel.
• Durability: a shorter service life than steel, especially outdoors where UV and temperature cycling cause embrittlement.
• Decontamination: the surface scratches more easily and some organic liquids can be absorbed into the material, so cleaning and inspection matter.

Best for: Temporary mobile barriers, portable spill trays, drain covers for low-corrosive chemicals, short-term unloading operations, cost-constrained facilities.

---

Mobile Chemical Containment Systems: Fast Deployment & Incident Control

Mobile chemical containment equipment (portable bunds, drain covers, booms and spill kits) is designed for rapid deployment in response to active or suspected leaks. Pre-staging it near high-risk operations (storage tanks, transfer points, loading docks, battery rooms) shortens the time to first containment, because responders don’t have to fetch equipment from elsewhere on site. Fixed automatic barriers work differently: they are already in the opening and close without anyone being present.

Key Features of Effective Mobile Barriers

• Ready-to-use design: deployable by one trained operator without tools or assembly.
• Matched to the chemicals on site: supplied with compatibility information for the liquids stored nearby.
• Sized for the scenario: capacity chosen from the volume of the largest likely release.
• Stable positioning: weighted, anchored or self-adhesive so it does not shift during cleanup or spray-down.
• Vapour hazards handled separately: barriers contain liquid, not vapour. Volatile or toxic releases need ventilation, gas detection and suitable respiratory protection.

Related context: Advanced Fire & Chemical Safety Strategies in Warehouse Design discusses infrastructure planning that integrates mobile systems with fixed barriers.

---

Warehouse Chemical Storage: Accident Statistics & Prevention Priorities

In the European Commission Joint Research Centre’s study of chemical accidents in warehouses (MAHB Lessons Learned Bulletin No. 16), 30 of the 38 cases analysed (79%) took place in independent warehousing and storage facilities, where products from different suppliers are received, stored and prepared for transport. Such warehouses often store chemicals from multiple suppliers in a single facility, may lack purpose-built design features, and the study frequently found inadequate emergency planning and poor inventory management.

Key Statistics on Warehouse Chemical Incidents

• Emergency response failures: According to the European Commission’s Major Accident Hazards Bureau (MAHB) Bulletin 16 on warehouse chemical accidents, emergency arrangements and response planning were inadequate in more than 50% of the cases studied; in almost half of those cases, emergency responders were among the fatalities and injuries.
• Design shortcomings: The same study found that in little over half of the events, warehouses were not appropriately designed to accommodate hazardous substances. Design issues included lack of segregation elements, lack of ventilation and smoke control, and improper structural materials.
• Firewater run-off: uncontained firefighting water mixed with hazardous substances reached the soil or water in 9 of the 38 events, and poor design of firewater containment systems was among the emergency-management issues identified (MAHB Bulletin 16).
• Property damage: The U.S. Chemical Safety Board reports that 30 serious chemical incidents reported between April 2020 and January 2025 in 15 states caused two fatalities, 25 serious injuries and about $1.8 billion in property damage. In the MAHB warehouse study, it was common for warehouses to be almost or completely destroyed, often with the loss of the entire stock.
• Domino effect risk: MAHB Bulletin 16 documents how incompatible substances stored together can turn a local release into a fire or explosion; in one case, sodium chlorite released from a punctured drum is suspected to have reacted with peracetic acid stored nearby. The 38 accidents in the study collectively caused 495 fatalities and at least 8,500 injuries.

Prevention Checklist: Reducing Warehouse Chemical Risk

• Design & layout: First, install permanent secondary containment (stainless steel or coated concrete), segregate incompatible chemicals, ensure clear floor space and accessible drain covers.
• Inventory management: Next, maintain an up-to-date chemical register with compatibility matrix; enforce “like with like” storage protocols.
• Equipment & maintenance: Furthermore, inspect container integrity, flanges, and seals quarterly; replace worn gaskets and clamps before failure.
• Mobile barriers & PPE: Additionally, pre-stage chemical barrier systems near high-risk zones; ensure emergency responders have access to drain covers, threshold barriers, and spill absorbents.
• Emergency planning: Moreover, document response roles, equipment locations, decontamination procedures, and notification contacts; conduct quarterly drills and update after each incident.
• Training & competence: Finally, ensure staff understand chemical hazards, incompatibilities, and correct use of barrier systems; certify emergency responders and document ongoing refresher training.

---

How to Evaluate Chemical Resistance: Selection Matrix for Your Facility

Choosing the right material for a chemical barrier requires a structured evaluation of exposure scenario, chemical compatibility, durability requirements and regulatory context. This matrix helps you match barrier type to your facility’s needs.

Step 1: Define Your Exposure Scenario

• Splash (momentary contact): typical of tank car unloading, pump failure or valve breakage. High velocity but brief exposure; the material needs good impact resistance.
• Spray (continuous aerosol): hose leaks, nozzle mis-directs, high-pressure cleaning. Requires a material with sustained repellency and low absorption.
• Pooling (immersion): tank base leaks, drain backup, containment overflow. The material must resist chemical attack and penetration over an extended time; temperature matters.
• Vapor / aerosol inhalation: volatile solvents, chlorine releases, acid mists. Requires ventilation and suitable respiratory protection (gas/vapour filters or supplied air; particle filters do not stop vapours). Passive liquid barriers are insufficient.

Step 2: Verify Chemical Compatibility

Check each chemical against the manufacturer’s chemical resistance data and the Safety Data Sheet. Key factors include the following:

• Chemical family: aqueous acids and bases are compatible with many polymers; organic solvents can degrade HDPE; some oxidizers and chloride-containing liquids attack metals, including stainless steel, so check the grade.
• Concentration: 10% sulfuric acid and 98% sulfuric acid behave very differently; always specify concentration in compatibility requests.
• Temperature: polymers lose strength and chemical resistance faster than metals as temperature rises; check the manufacturer’s temperature limits.
• Duration of exposure: short-term contact (hours to days) allows lower-rated materials; long-term exposure (months to years) requires fully rated systems.

Step 3: Calculate Containment Volume & Select System Size

The sizing rule depends on what you store and where (see the table above):

• Oil in bulk containers (EPA SPCC): the entire capacity of the largest single container plus freeboard for precipitation.
• Hazardous waste in containers (RCRA): the greater of the largest container or 10% of the total volume.
• Example: four 200-litre drums of hazardous waste (800 litres in total) stored indoors: the greater of 200 litres (largest drum) and 80 litres (10% of 800) gives at least 200 litres of containment. If the drums held oil under SPCC, the result would also be 200 litres, plus freeboard if the area is exposed to rain.
• Mobile barriers: choose modular systems that can be combined to meet your calculated volume.

Step 4: Assess Durability & Maintenance Requirements

---

Frequently Asked Questions (FAQ)

---

Building Your Chemical Protection Plan: Step-by-Step Framework

Phase 1: Risk Assessment & Inventory (Weeks 1-2)

• Chemical inventory: Begin by listing all hazardous liquids stored, transferred, or processed; include chemical names, CAS numbers, quantities, storage locations, and container types.
• Hazard identification: Next, consult Safety Data Sheets (SDS) for each chemical; note hazard classes (acute tox, corrosive, environmental hazard) and physical state (liquid, vapor pressure).
• Spill risk mapping: Then, identify leak points (pump flanges, valve seals, container seams, transfer hoses) and potential pathways (floor slopes, drain locations, adjacent areas).
• Regulatory scope: Finally, determine if your facility is subject to EPA SPCC (oils) or RCRA (hazardous waste), state environmental rules, or industry-specific standards (pharma, food, semiconductor manufacturing).

Phase 2: Barrier Selection & Procurement (Weeks 3-4)

• Material selection: Using the compatibility matrix above, first choose stainless steel for permanent/high-risk installations and HDPE or hybrid systems for portable/temporary use.
• Volume calculation: Next, calculate the required containment volume with the rule that applies to your site (see Step 3) and choose barrier configurations (single large tray vs. modular multi-piece system).
• RFQ & supplier evaluation: Then, request quotes from 2-3 manufacturers; ask for compatibility data, material test data and references from similar facilities.
• Positioning & procurement: Finally, work with facility management to stage barriers near identified risk zones (loading dock, pump room, storage area) for rapid access.

Phase 3: Training & Procedures (Weeks 5-6)

• Deployment drills: First, train staff on barrier setup, positioning and use; simulate a spill scenario, set a target time to isolate a leak and measure it.
• Decontamination procedures: Next, document a step-by-step cleanup protocol, including the neutralisation or cleaning agents named in the SDS, waste disposal routes and respiratory protection requirements.
• Emergency contact & escalation: Then, define who calls 911 and the environmental authorities if a spill exceeds containment capacity; specify pre-positioned phone numbers and facility access codes for responders.
• Documentation & certification: Lastly, record all training attendance; keep chemical compatibility data on file; document barrier inspection logs and maintenance history for regulatory audits.

Phase 4: Implementation & Ongoing Management (Months 2+)

• Quarterly inspections: Establish a schedule for systematic checks of all barriers; look for cracks, permeation, corrosion, drain blockages, and hardware degradation.
• Annual drills: Moreover, conduct at least one full-scale spill simulation per year; involve all relevant departments and document performance metrics (response time, containment integrity, cleanup speed).
• Update & refresh: Additionally, after each incident or near-miss, review and update the plan; replace damaged barrier components immediately; conduct additional training if deficiencies emerge.
• Regulatory compliance documentation: Furthermore, maintain SPCC Plan updates, RCRA permits, training records, and incident reports in a centralized system accessible to auditors and emergency responders.

---

Conclusion: Chemical Barriers as a Core Risk Management Strategy

Chemical protection barriers are essential infrastructure that bridges the gap between regulatory compliance and operational resilience. Accident analyses such as the JRC’s warehouse study show the same pattern again and again: inadequate design, missing containment and weak emergency planning turn a release into a major accident.

By implementing a layered chemical protection strategy - combining permanent containment for high-risk storage, chemical barrier systems at doors and drains, regular training and documented emergency procedures - you reduce incident frequency, limit escalation when leaks occur, protect personnel and the environment, and support regulatory compliance.

Next steps: Review your facility’s current hazardous liquid storage, conduct a gap analysis against the rules that apply to you (for example EPA SPCC and RCRA in the U.S.), and contact a barrier supplier to assess your needs.

---
